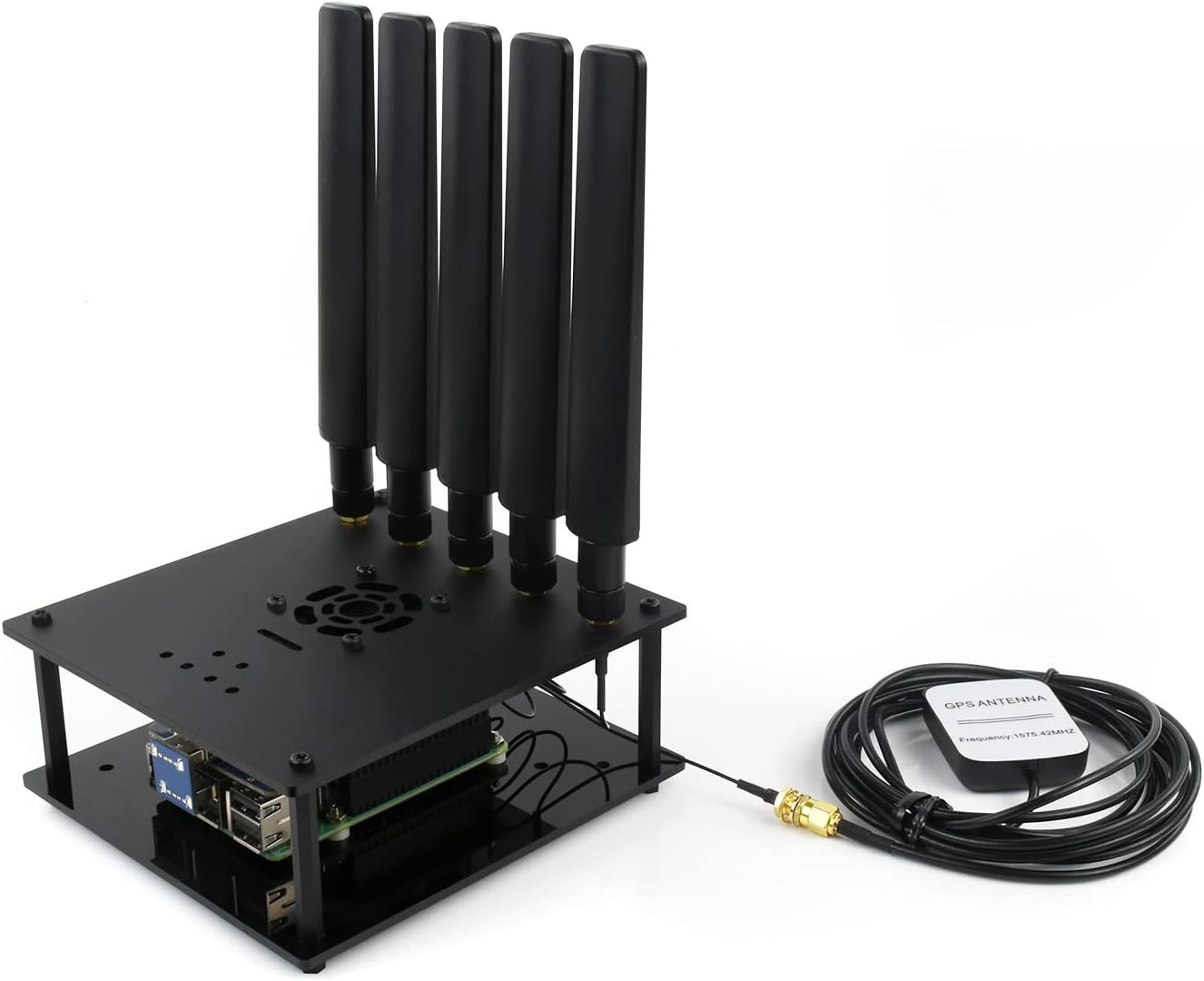

Waveshare SIM8200EA-M2 5G HAT for Raspberry Pi - Fast 5G Evaluation

In this review the Waveshare SIM8200EA-M2 5G HAT is evaluated as a developer-oriented communications HAT for Raspberry Pi and similar SBCs; the bottom line is that it is best for makers and engineers who need a ready-made 5G/4G/3G interface and GNSS positioning on a Pi-sized platform. The HAT ships with the SIM8200EA-M2 module based on the Qualcomm Snapdragon X55, includes a USB3.1 test port and audio jack, and comes in a case with a cooling fan, making it a practical pick for rapid prototyping of high-speed cellular projects.

Key Features

• Standard GPIO header: The standard Raspberry Pi 40PIN GPIO extension header makes installation straightforward on Raspberry Pi series boards and compatible SBCs like Jetson Nano.
• Qualcomm X55 platform: The onboard SIM8200EA-M2 module based on the Snapdragon X55 enables multi mode, multi band cellular connectivity including 5G NSA and SA for high throughput testing.
• High-speed data and USB3.1 test port: A USB3.1 port is provided for sending AT commands, transferring data, testing cloud connectivity and retrieving GNSS positioning data directly from a connected host.
• Integrated GNSS and audio: Multi-constellation dual-band GNSS (GPS, GLONASS, Beidou, Galileo, QZSS) plus an onboard audio jack and decoder expand use cases to positioning and voice applications.
• SIM and indicators: The built-in SIM card slot supports 1.8V and 3V cards and two LED indicators make it easy to monitor link and activity status during development.
• Accessory kit: The included acrylic case and cooling fan provide a neat enclosure and improved heat dissipation for longer test sessions.

Who It's For

The HAT is aimed at hardware developers, IoT integrators and educators who want an off-the-shelf 5G interface for Raspberry Pi or Jetson Nano boards; it is especially useful when you need to evaluate 5G module performance or add cellular connectivity, GNSS and audio to a prototype without designing a custom board. Its support for Windows, Linux and Android host environments and AT command compatibility eases integration into mixed development stacks.

It is not ideal for end users seeking a plug-and-play consumer hotspot with bundled service - network configuration and some command-line work are expected. Teams that require certified industrial enclosures or fully managed service integration may prefer a completed product built around an integrated modem rather than a development HAT.

Pros & Cons

Pros

• Comes with the SIM8200EA-M2 module on board, offering real 5G NSA/SA support for high throughput development.
• Standard 40PIN GPIO and M.2 connector flexibility make swapping modules or using other M2 modules straightforward.
• USB3.1 test port, GNSS support and onboard audio expand prototyping possibilities beyond simple data links.
• Included acrylic case and cooling fan help with heat management during extended testing.

Cons

• Requires some technical setup and familiarity with AT commands and host OS configuration; not an out-of-the-box consumer router.
• Heat dissipation depends on the included fan and case; heavy sustained loads may still need additional cooling in constrained environments.

Specifications

Module	SIM8200EA-M2 (Qualcomm Snapdragon X55)
Network	5G / 4G / 3G multi mode, multi band; supports 5G NSA and SA
Host Interface	Standard Raspberry Pi 40PIN GPIO header, USB3.1 port
GNSS	Multi-constellation dual-band GPS, GLONASS, Beidou, Galileo, QZSS
SIM	SIM card slot, supports 1.8V and 3V SIM cards
Indicators & Audio	2x LED indicators, onboard audio jack and decoder
Accessories	Quality acrylic case and cooling fan included

Our Verdict

The Waveshare SIM8200EA-M2 5G HAT is a solid development platform for engineers and makers who need real 5G speeds, GNSS and audio on a Raspberry Pi or similar SBC. It delivers versatile interfaces and convenience hardware like a case and fan, making it good value for prototyping and fast evaluation of 5G module capabilities, provided the user is comfortable with AT commands and basic system setup.

Frequently Asked Questions

Does this HAT support Raspberry Pi boards?
Yes, it uses the standard 40PIN Raspberry Pi GPIO header and explicitly supports Raspberry Pi series boards and Jetson Nano.

Can I get GNSS position data from the board?
Yes, the module provides multi-constellation dual-band GNSS (GPS, GLONASS, Beidou, Galileo, QZSS) and position data can be read via the USB3.1 port or AT commands.

Is a SIM card required and which types are supported?
Yes, a SIM card is required for cellular links; the slot supports 1.8V and 3V SIM cards and standard provisioning via your carrier is needed.
