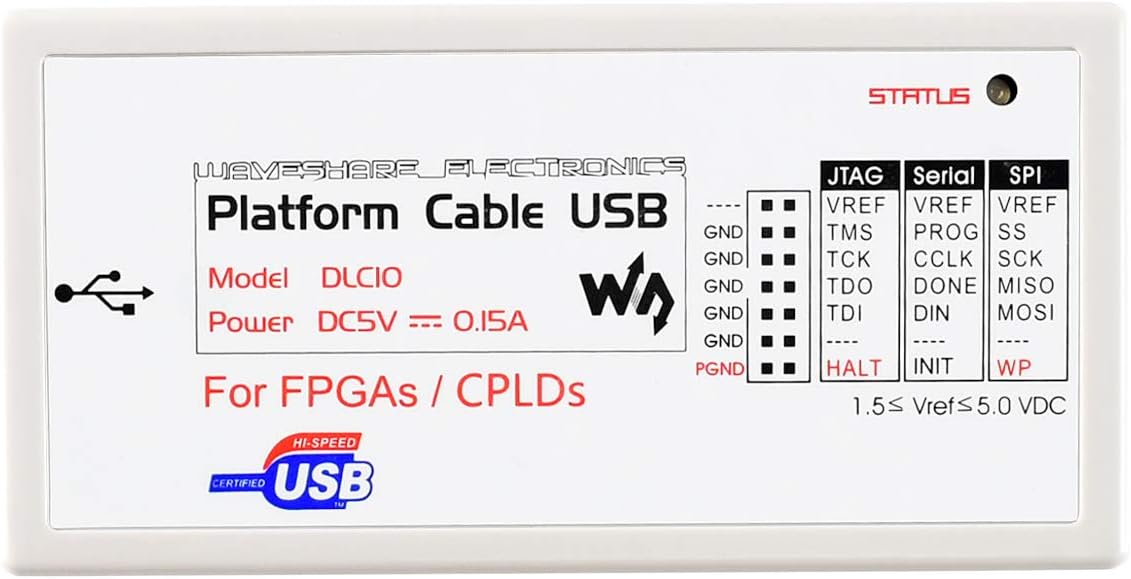

Waveshare XILINX JTAG Download Debugger Cable - FPGA CPLD Programmer

Our review of the Waveshare XILINX JTAG Download Debugger Cable concludes it is a practical tool for engineers and hobbyists who need a straightforward, compatible programmer for Xilinx FPGA and CPLD devices. The single biggest reason to buy is its direct support for common Xilinx software and interfaces, making board bring-up and in-circuit programming simpler without requiring proprietary vendor hardware. The reviewer found the cable reliable for routine configuration tasks and useful as a lower-cost alternative for development and lab benches.

Key Features

• XILINX compatibility: Works with Xilinx ISE, iMPACT and ChipScope so users can program and debug devices using familiar vendor tools.
• Multiple interfaces: Supports JTAG, Slave-Serial and SPI, enabling configuration of a wide range of FPGA and CPLD targets in different system setups.
• Proven solution: Based on the CY7C68013A plus XC2C256 design which provides a stable USB to JTAG bridge for reliable transfers.
• Included resources: Ships with a user guide and CD containing schematic, software, drivers and examples which speeds setup and integration.
• Programming focus: Designed specifically for FPGA/CPLD configuration and in-circuit debugging, so it fits development and lab workflows.

Who It's For

The Waveshare cable is aimed at electronics engineers, FPGA developers and advanced hobbyists who use Xilinx toolchains and need a dedicated cable for device configuration and debug. It is especially useful in lab environments where direct JTAG and serial programming are routine and where compatibility with iMPACT and ChipScope matters.

It is less suitable for complete beginners who prefer graphical, vendor-backed turnkey programmers with full commercial support or for teams requiring official certified programming hardware for production programming at scale.

Pros & Cons

Pros

• Good compatibility with major Xilinx software including ISE and iMPACT for a seamless toolchain experience.
• Supports multiple interfaces (JTAG, Slave-Serial, SPI) for flexible board-level programming options.
• Includes documentation, drivers and examples on a user guide CD which helps initial setup and testing.

Cons

• Not positioned as an official vendor-certified production programmer, so teams needing guaranteed support contracts may look elsewhere.

Specifications

Category	XILINX FPGA/CPLD configuration and programming Cable
Software	Xilinx ISE, iMPACT, ChipScope
Interfaces	JTAG, Slave-Serial and SPI
Solution	CY7C68013A + XC2C256
Included materials	User Guide CD with schematic, software, drivers and examples

Our Verdict

The Waveshare XILINX JTAG Download Debugger Cable is a sensible value choice for developers who need reliable Xilinx tool compatibility and multiple interface options for FPGA and CPLD programming. It is cost effective for lab use and development cycles, offering the core features required for configuration and in-circuit debugging without unnecessary extras.

Frequently Asked Questions

Does this cable work with Xilinx ISE?
Yes, it is compatible with Xilinx ISE, iMPACT and ChipScope for programming and debugging.

What interfaces are supported?
The cable supports JTAG, Slave-Serial and SPI interfaces for various configuration modes.

What is included with the cable?
It includes a user guide CD that contains schematic files, drivers, software and example projects to aid setup.
