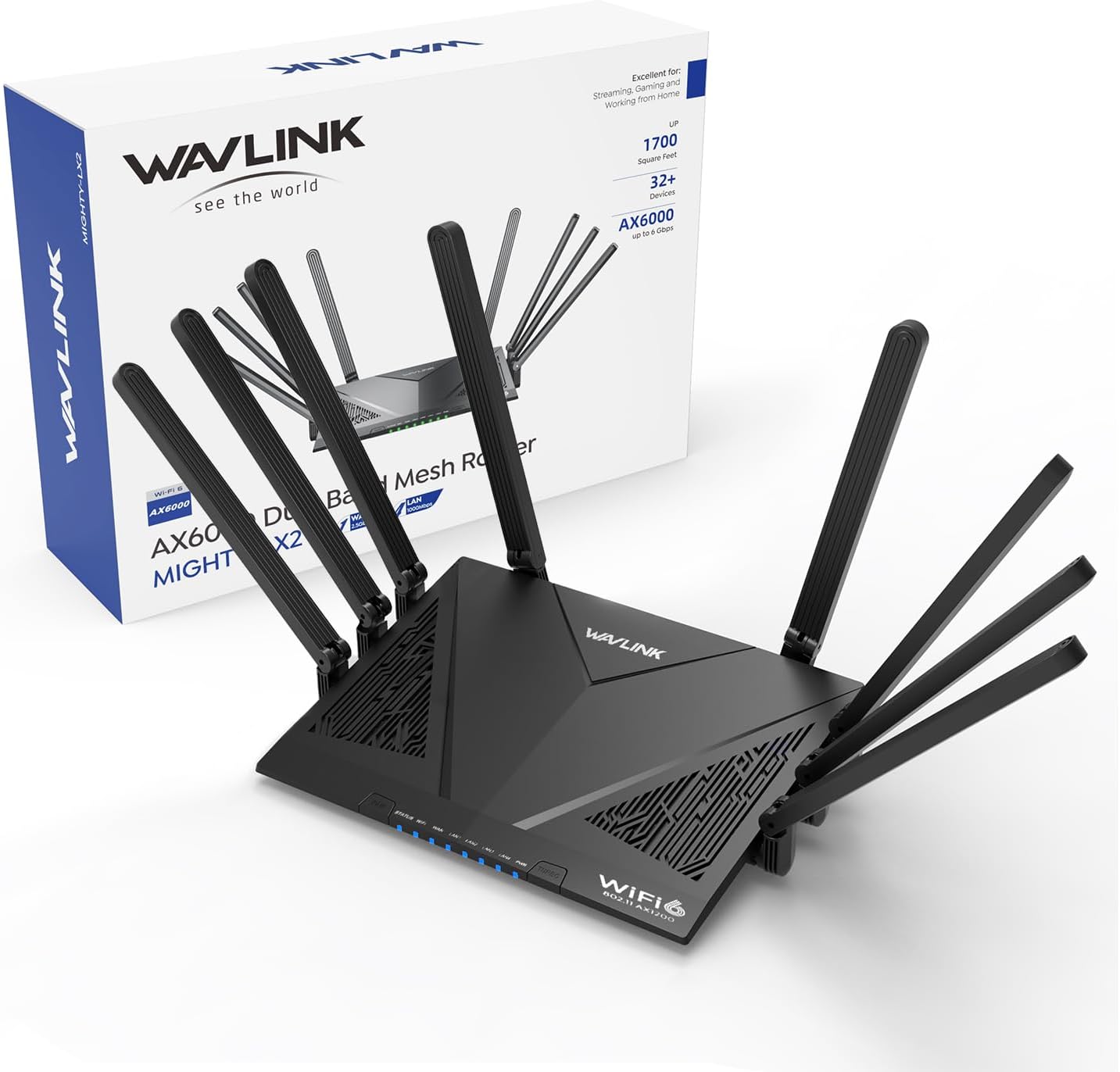

WAVLINK AX6000 Dual Band WiFi 6 Router - High Speed Mesh Router

In this review the WAVLINK AX6000 Dual Band WiFi 6 Router is presented as a practical choice for large homes and busy networks where raw throughput and whole-home coverage matter most. The bottom line: this router delivers genuinely fast AX6000 speeds with a 2.5G WAN option and mesh capability, making it a solid pick for 4K streaming, gaming, and many simultaneous devices. Setup is straightforward with the WavRouter app or web UI, and the router's security and VPN options make it a useful hub for users who want both speed and control.

Key Features

• AX6000 speed: Dual-band WiFi 6 with 160MHz channels provides up to 1148Mbps on 2.4GHz and 4804Mbps on 5GHz for smoother 4K streaming and lower latency in games.
• 2.5G WAN and Gigabit LAN: One 2.5G port plus four Gigabit LAN ports let you customize WAN/LAN roles and support faster wired backhaul or a high-speed internet connection.
• Mesh ready: Everything Mesh compatibility allows adding extenders to create a single seamless network across larger homes without manual network switching.
• Improved coverage: Eight 5dBi omni-directional antennas with beamforming extend reliable coverage up to roughly 1,700 sq. ft. and help keep connections stable.
• Modern security: Supports WPA2/WPA3 mix, WPA/WPA2-Enterprise and multiple VPN protocols including OpenVPN and WireGuard for remote access and encrypted links.
• Device capacity: OFDMA and 4x4 MU-MIMO enable efficient simultaneous communication with 32+ devices, reducing congestion on busy home networks.

Who It's For

The WAVLINK AX6000 is well suited for families or small offices that stream 4K video, play online games, and run many smart home devices at once; the high 5GHz throughput and 2.5G port are particularly useful where ISP speeds or internal transfers exceed Gigabit limits. Power users who want a single network with mesh extenders and built-in VPN options will appreciate the flexible configuration and long-range antennas.

Less ideal for those on a tight budget who need only basic coverage for a studio or one-bedroom apartment, or for users who prefer a minimal app-free experience; although the router offers a web UI, the WavRouter app is the primary guided setup path.

Pros & Cons

Pros

• Very high AX6000 throughput on 5GHz for streaming and gaming with reduced latency.
• 2.5G WAN plus four Gigabit LAN ports provide versatile wired connectivity options.
• Everything Mesh support and eight antennas deliver broader, more consistent home coverage.
• Strong security choices with WPA3 and multiple VPN protocols for remote access.

Cons

• Physical size and eight antennas may be bulky in small living spaces.
• Advanced VPN and enterprise features require some networking knowledge to configure optimally.

Specifications

Wireless Standard	WiFi 6 (802.11ax) dual band
Maximum Speed	AX6000 total (1148Mbps 2.4GHz + 4804Mbps 5GHz)
WAN/LAN Ports	One 2.5G WAN port, four Gigabit LAN ports
Antennas	8 x 5dBi omni-directional antennas with beamforming
Mesh	Everything Mesh compatible for single SSID whole-home coverage
Security	WPA2/WPA3-PSK MIX, WPA/WPA2-Enterprise, OpenVPN, WireGuard, PPTP, L2TP
Management	WavRouter app or web UI at 192.168.20.1

Our Verdict

The WAVLINK AX6000 is a strong value for homes that need high dual-band throughput, wide coverage and flexible wired options like a 2.5G port. It balances performance, mesh expandability and modern security, making it a practical choice for streaming, gaming and multi-device households that want future-proofed WiFi at a reasonable price.

Frequently Asked Questions

Can I use this router with mesh extenders?
Yes, it supports Everything Mesh so you can add compatible WAVLINK mesh extenders to create a single seamless network across your home.

Does the router support VPN connections?
Yes, it supports OpenVPN and WireGuard as well as PPTP and L2TP, allowing remote VPN access to the home network.

How do I update firmware?
Search model 536AX6 on WAVLINK support for the latest firmware and follow the update steps in the WavRouter app or web UI.
