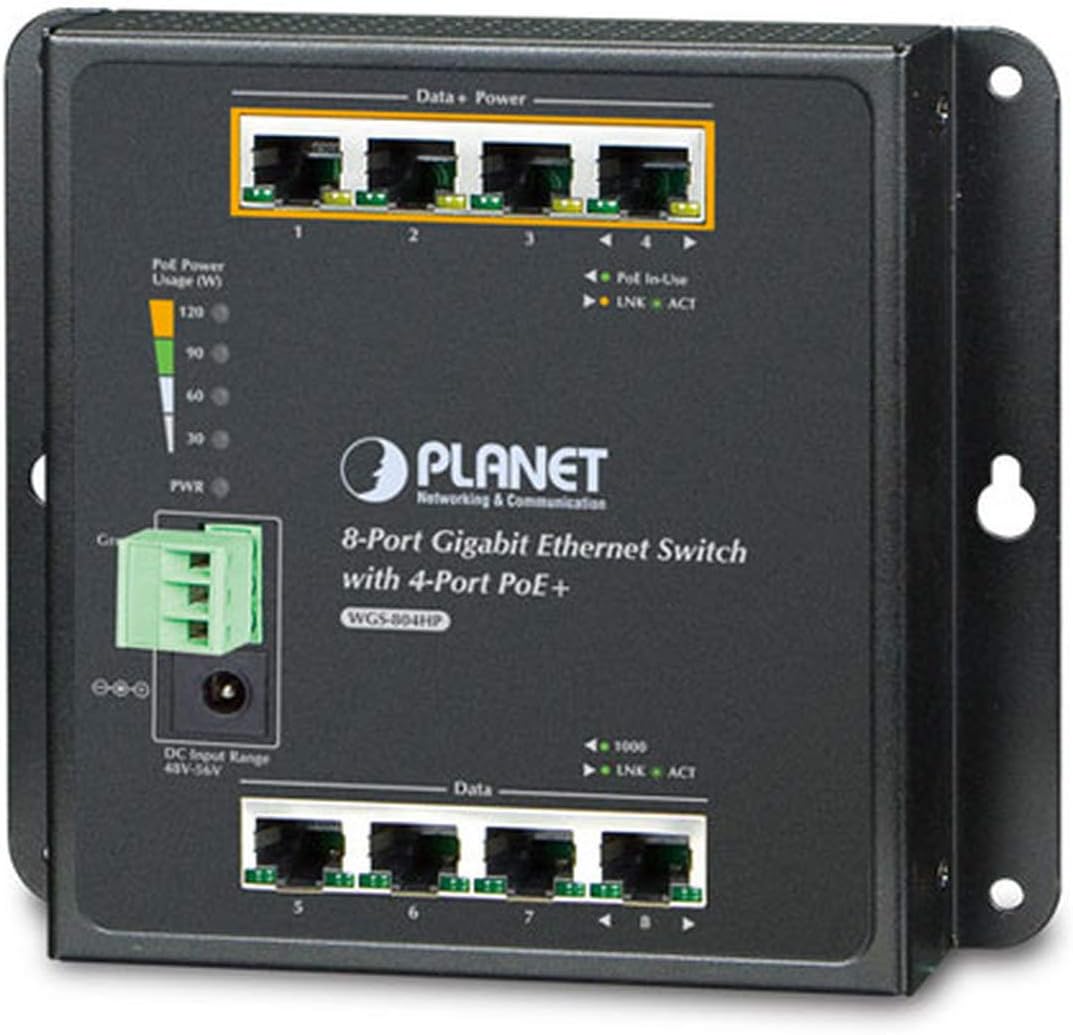

WGS-804HP 8-Port Gigabit Wall Mounted Switch - 4-Port PoE

In this review the WGS-804HP is examined as a compact, wall-mounted gigabit switch for small installations that need reliable Power over Ethernet. The single biggest reason to consider it is its combination of four IEEE 802.3af/at PoE+ ports with a generous 120 watt total power budget, which lets a reviewer deploy multiple IP cameras or access points without a separate power injector. It is designed for installation in a wall enclosure or mounted directly on a wall and aims to deliver quiet, stable operation in a variety of environments.

Key Features

• Wall-mounted design: The compact IP30 metal housing allows secure installation inside a wall enclosure or on any convenient wall surface, saving rack space.
• Four PoE+ ports: Four IEEE 802.3af/at ports supply power to devices like cameras and wireless access points without separate power supplies.
• 120 watt PoE budget: A 120 W total power budget supports multiple high-power PDs simultaneously for small surveillance or IoT deployments.
• Full gigabit ports: Eight 10/100/1000TX ports provide high throughput for local network traffic and reduce bottlenecks between devices and backbone links.
• Wide operating range: Rated to operate from -10 to 60C, it can be used in moderately demanding indoor environments without performance loss.
• Rugged metal housing: The industrial-grade enclosure offers durability and helps the unit run quietly and reliably over time.

Who It's For

The WGS-804HP is best suited to installers and integrators setting up small to medium IP surveillance systems, building automation nodes, or compact wireless access point clusters where wall mounting is preferred. Its combination of gigabit switching and a 120 W PoE budget makes it useful for sites that need several powered devices but lack rack space.

It is less appropriate for very large networks that require managed features, VLAN segmentation, or higher port counts; network administrators who need advanced management should consider a managed switch. For simple unmanaged edge deployments that prioritize PoE capacity and easy wall installation, the WGS-804HP fits well.

Pros & Cons

Pros

• Solid PoE capacity with 120 W total budget enables multiple PoE+ devices without extra injectors.
• Eight gigabit ports deliver ample throughput for local networks and high-definition cameras.
• Wall-mountable IP30 metal housing is compact and durable for indoor installations.
• Wide operating temperature range supports varied indoor environments.

Cons

• Unmanaged feature set means no advanced VLAN or QoS controls for complex networks.
• Power consumption figures indicate the unit draws significant power when fully loaded, which may matter in constrained power scenarios.

Specifications

Ports	8 x 10/100/1000TX
PoE Ports	4 x IEEE 802.3af/at
Total PoE Budget	120 Watts
Switch Throughput	11.9 Mpps
Power Consumption	140 Watts / 478 BTU
Operating Temperature	-10 to 60C
Housing	IP30 metal

Our Verdict

The WGS-804HP is a practical, value-oriented choice for installers who need a compact, wall-mounted gigabit switch with substantial PoE+ power. It delivers dependable performance and a useful 120 W budget for cameras or APs, making it a good fit where unmanaged simplicity and reliable power delivery matter more than advanced management features.

Frequently Asked Questions

Can this switch power multiple PoE+ cameras?
Yes. With four IEEE 802.3af/at ports and a 120 W budget it can power several cameras or a mix of cameras and access points depending on device power draw.

Is the unit suitable for outdoor mounting?
No. The IP30 metal housing is intended for indoor wall enclosures or indoor wall mounting, not for exposed outdoor installations.

Does it support managed switch features?
It is an unmanaged gigabit switch intended for plug-and-play use and does not provide advanced management, VLANs, or routing features.
