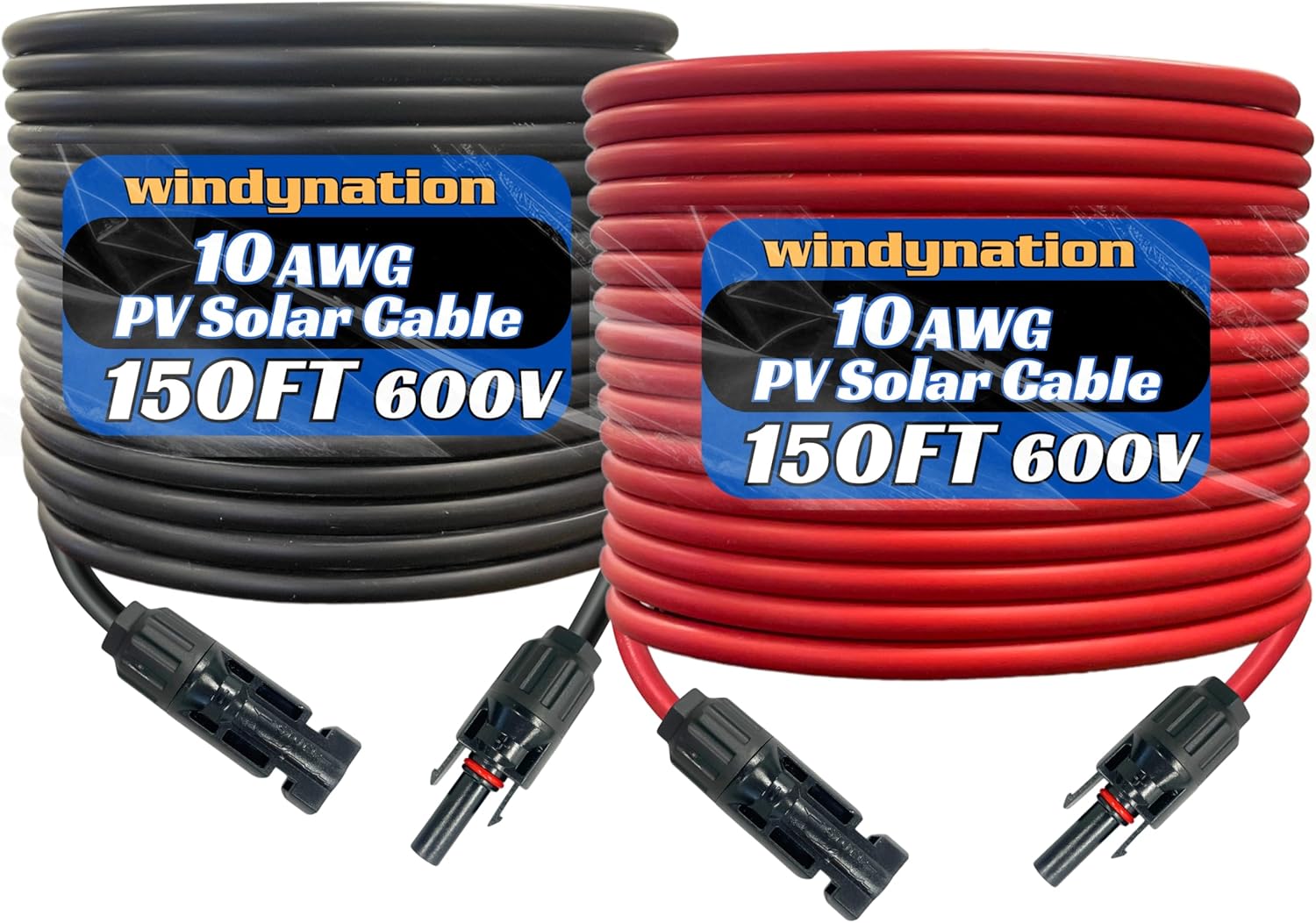

WindyNation 10 Gauge AWG Pair 150 ft Black + 150 ft Red PV Cable

In this review the WindyNation 10 Gauge AWG Pair is examined as a straightforward, heavy duty photovoltaic extension cable for residential and small commercial solar installs. The bottom line: this set is best for DIYers and installers who need a long, flexible, low-resistance run with ready-made connectors; the biggest reason to buy is the combination of pure copper conductors and factory-crimped PV connectors that save installation time while supporting high amperage loads. For anyone wiring panels or extending battery connections, the cable's UL4703 rating and outdoor XLPE jacket make it a practical, reliable choice.

Key Features

• UL4703 approval: Certified photovoltaic cable ensures code compliance for PV module interconnection and safer long-term use.
• Pure copper conductors: Low electrical resistance improves efficiency and reduces voltage drop over the 150 ft runs.
• Factory PV connectors: Each cable arrives terminated with one male and one female PV connector for fast, tool-light hookups to industry standard connectors.
• Flexible multi-strand construction: Fine 0.25 mm strands give the 10 AWG run extra flexibility for routing in tight or confined spaces.
• Outdoor-rated XLPE jacket: Resistant to UV, abrasion, heat and cold and suitable for direct burial and wet conditions.
• Wide operating range: Rated from -40C to 90C so it holds up in extreme weather and wet or dry environments.

Who It's For

This cable pair is aimed at homeowners, solar hobbyists and installers who need a long, reliable extension between panels, combiner boxes or battery banks. It is particularly good where a ready-made terminated cable saves time and reduces the chance of poor field crimping.

Those who need very low gauge runs for extremely high current systems should look at heavier 8 AWG options, and buyers who require custom connector types or lengths should consider having cables made to order instead of using pre-terminated 150 ft pairs.

Pros & Cons

Pros

• Solid build quality with pure copper conductors for low resistance and good efficiency.
• Convenient pre-terminated PV connectors speed installation and are IP67 weatherproof.
• Durable XLPE jacket rated for direct burial and extreme temperatures.
• Flexible strand count makes routing easier than stiff single-strand cable.

Cons

• Pre-terminated 150 ft length may be longer than needed for some projects and cannot be shortened without re-terminating.
• Some users reported very tight connections that were difficult to separate in the field.

Specifications

Brand	WindyNation
Length	150 ft red + 150 ft black
Wire gauge	10 AWG pair (also available 12 AWG and 8 AWG strand counts)
Voltage rating	600 V photovoltaic
Connector type	One male and one female PV connector per cable, industry standard
Insulation	XLPE outdoor-rated, direct burial capable
Operating temperature	-40C to 90C (-40F to 194F)

Our Verdict

The WindyNation 10 AWG PV extension pair is a practical, cost-effective choice for most small to medium solar installations because it pairs low-resistance pure copper conductors with weatherproof factory connectors and a durable XLPE jacket. It represents good value for DIYers and installers who want reliable pre-terminated cable that meets NEC wiring article 690 requirements, though those needing custom lengths or easier connector separation should consider alternatives.

Frequently Asked Questions

Are these cables suitable for direct burial?
Yes, the UL4703 rating and XLPE jacket indicate the cable is rated for direct burial use.

Will the PV connectors fit other brands?
The cables use industry standard male and female PV connectors designed to be compatible with most PV connector systems.

What current can 10 AWG handle?
The 10 AWG conductor is rated for about 40 A, while 12 AWG and 8 AWG options cover lower and higher amperage needs respectively.
