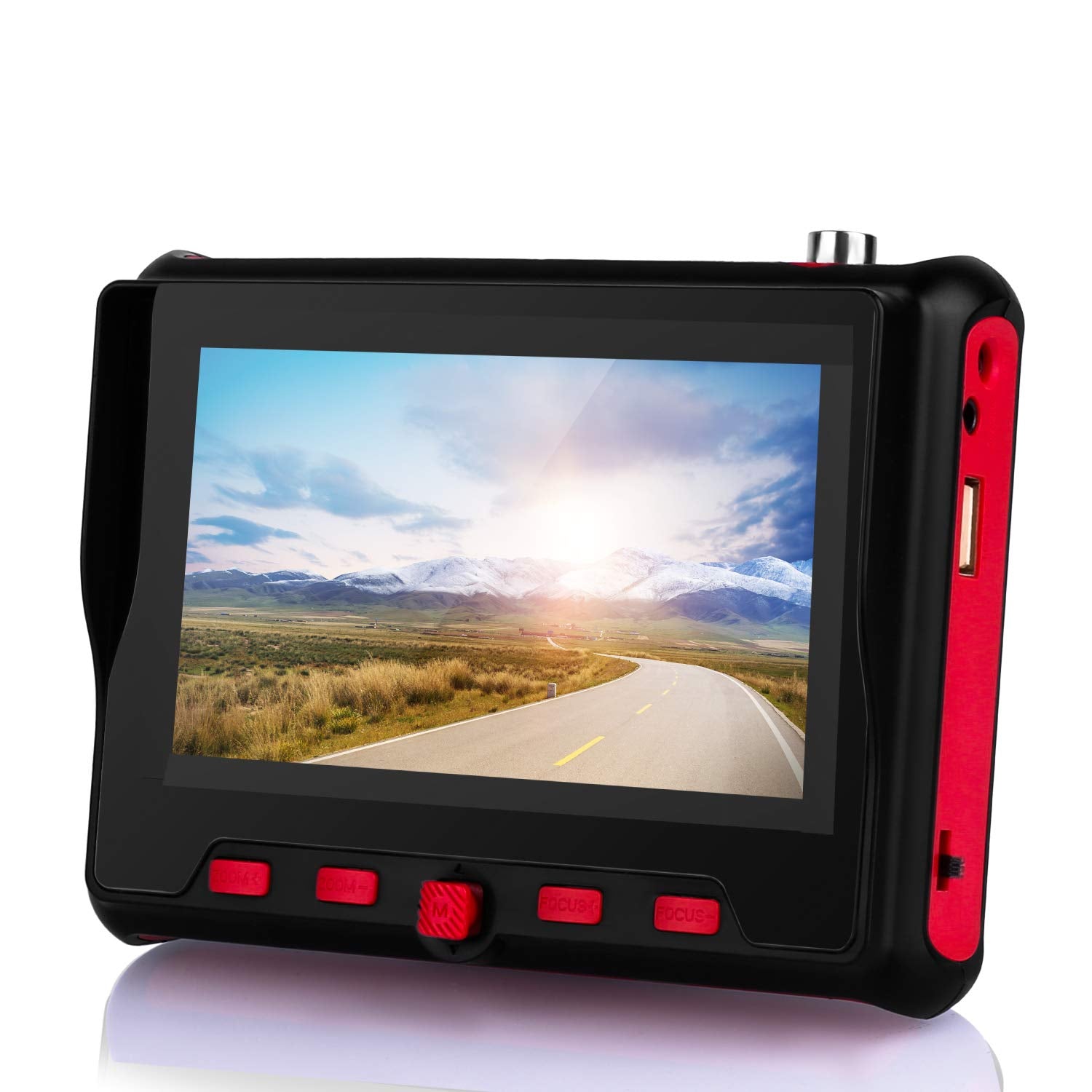

Wrist CCTV Tester with 4.3in TFT LCD for Security Cameras

The Wrist CCTV Tester is an essential tool for anyone involved in the installation and maintenance of security camera systems. With its compact design and lightweight build, this portable device is perfect for technicians on the go. The 4.3 inch TFT color LCD screen boasts a resolution of 480X272, ensuring that you can view clear images while troubleshooting various camera setups.

One of the standout features of this portable camera tester is its ability to support CVBS analog cameras. It automatically adapts to PAL and NTSC formats, making it versatile for different environments. However, it is important to note that this device does not support IP cameras or CVI/TVI/AHD cameras, so it is specifically tailored for analog systems.

Equipped with video display capabilities, the LCD screen allows for easy monitoring of camera feeds, which is crucial when correcting faraway installations. The high-resolution video monitor provides a clear view, making it easier to identify issues quickly and efficiently.

Another impressive feature is the PTZ control support, which includes RS485 and coaxial control compatibility. This allows users to operate multiple PTZ protocols, such as PELCO-D and PELCO-P, with adjustable baud rates of 2400, 4800, 9600, and 19200. The ability to zoom in and out, adjust focus, and set aperture makes this CCTV tester a powerful tool for comprehensive camera management.

In addition to video testing, the device also supports audio testing, ensuring that both video and sound are functioning correctly. The multilingual OSD supports 12 languages, making it user-friendly for technicians worldwide. The brightness, contrast, and color saturation can be adjusted to suit different lighting conditions, enhancing the overall usability of the device.

For added convenience, the tester features a USB 2.0 interface that provides a 5V / 1A emergency power output, along with a DC 12V / 1A power output from the tester itself. This means you can power your devices directly from the tester, making it a versatile addition to your toolkit.

With a built-in 3.7V 3000 mAh rechargeable lithium polymer battery, the Wrist CCTV Tester offers a long work time of up to 6 hours after just 2-3 hours of charging. This extended battery life ensures that you can complete your tasks without interruptions. Additionally, the device includes LED emergency lighting, providing extra functionality in low-light situations.

In summary, the Wrist CCTV Tester is a reliable and efficient tool for security camera technicians. Its combination of features, portability, and ease of use makes it an invaluable asset for anyone working with CCTV systems.
