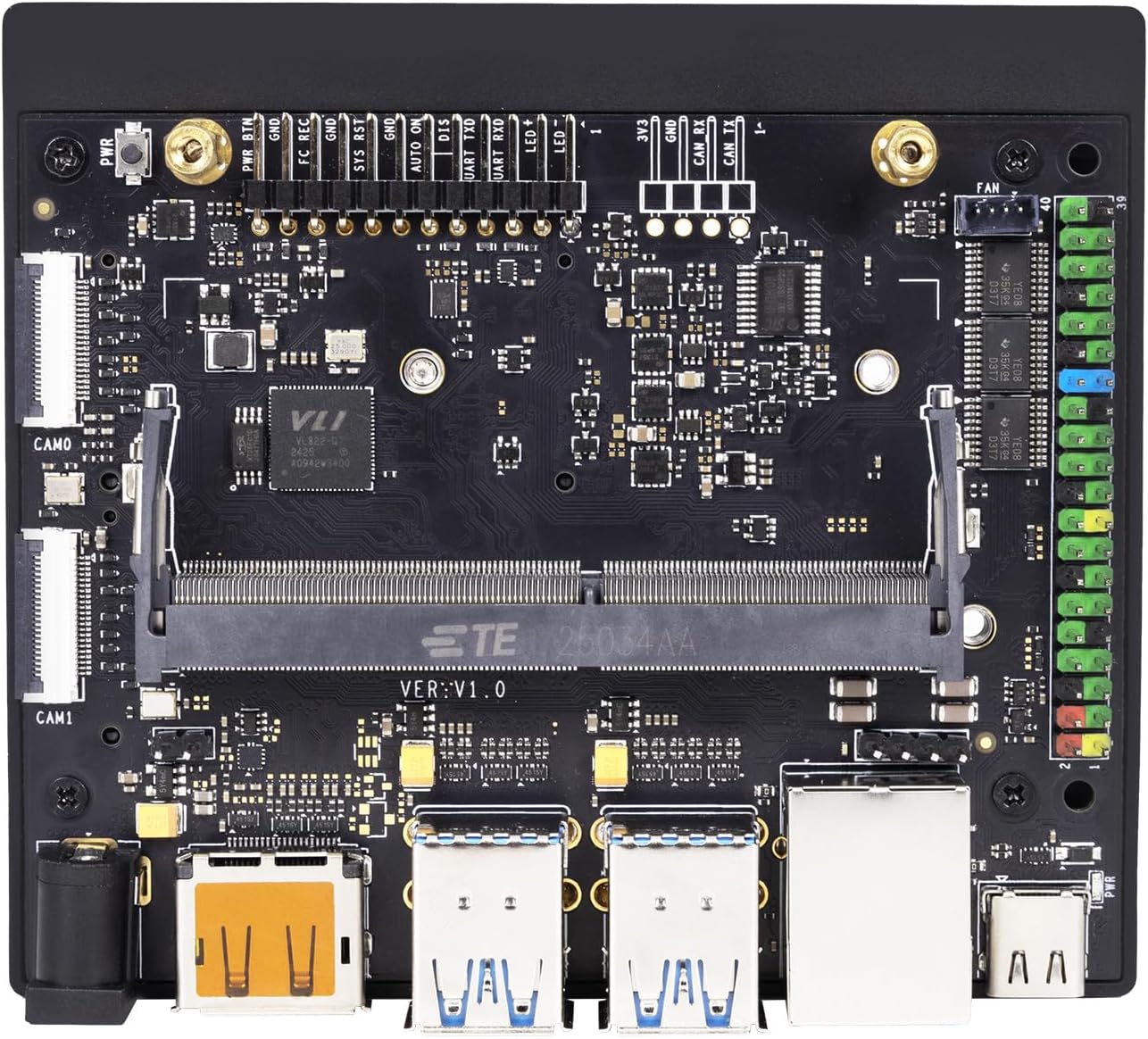

Yahboom Jetson Orin Super Carrier Board AI Development Board

In this review the Yahboom Jetson Orin Super Carrier Board is judged as a practical development board for electronic and mechanical engineers who need a drop-in compatible baseboard for Orin Nano Super and Orin NX Super core modules. The bottom line: it mirrors the official baseboard layout while adding protection and power flexibility, so the single biggest reason to buy is straightforward compatibility with Orin Nano Super 4/8GB and Orin NX Super 8/16GB modules combined with enhanced electrical protection.

Key Features

• Official-compatible interface: The board follows the official baseboard solution so users get the same connector layout and expected signals for easier development and porting of projects.
• Module compatibility: Supports Orin Nano Super 4GB and 8GB and Orin NX Super 8GB and 16GB core modules, giving flexibility across performance classes.
• Protection enhancements: Built-in DC reverse connection protection and USB overcurrent output protection reduce the risk of accidental damage during prototyping.
• Wide voltage input: The carrier accepts 9-19V via a DC5525 jack so it can run from a variety of power sources while the board itself has very low idle power draw.
• M.2 storage and wireless support: Two M.2 Key M slots for SSDs and one M.2 Key E slot for wireless cards simplify expansion without extra cabling.
• Display output: Includes a DP high-definition interface for direct display connectivity during development and testing.

Who It's For

This board is aimed at electronic and mechanical engineers, system integrators, and advanced hobbyists building AI prototypes or embedded systems who already plan to use an Orin Nano Super or Orin NX Super core module. The matching interface and electrical optimizations make it convenient for lab development, robot control, and edge AI projects where module interchangeability matters.

Those who should look elsewhere are beginners seeking a turnkey single-board computer with on-board CPU, or projects that need a radically smaller or more power-constrained carrier than this design; this product is intended as a carrier for Orin Super modules rather than a fully integrated consumer device.

Pros & Cons

Pros

• Direct compatibility with official baseboard layout simplifies module installation and software porting.
• Added DC reverse connection and USB overcurrent protection improve reliability during development.
• Flexible power input range and low standby consumption let the board fit varied power setups.
• Multiple M.2 slots and DP output reduce the need for additional adapters during prototyping.

Cons

• It is a carrier board only, so a compatible Orin Super core module is required to function.
• Not intended as a finished consumer product; additional enclosure and thermal solutions may be needed for deployment.

Specifications

Compatible modules	Orin Nano Super 4/8GB; Orin NX Super 8/16GB
Power input	DC5525 jack, 9-19V wide voltage support
Protection	DC reverse connection and USB overcurrent output protection
M.2 slots	2x Key M for SSD, 1x Key E for wireless card
Display	DP high-definition interface
Bare board power consumption	As low as 0.05W
Maximum carrier board power	Supports up to 40W

Our Verdict

The Yahboom Jetson Orin Super Carrier Board is a sensible, value-oriented choice for engineers who want an officially compatible carrier with added protection and flexible power. Buy it if you already plan to use an Orin Nano Super or Orin NX Super module and need the convenience of matching I/O plus M.2 expansion; it saves integration time and reduces common hardware risks during development.

Frequently Asked Questions

Which Orin modules work with this board?
The carrier supports Orin Nano Super 4GB and 8GB, and Orin NX Super 8GB and 16GB core modules.

What power supply is required?
Use a 9-19V supply with a DC5525 connector; the board supports wide voltage and up to 40W for attached modules.

Does the board include SSD and wireless slots?
Yes, it provides two M.2 Key M slots for SSDs and one M.2 Key E slot for wireless cards to minimize extra cabling.
