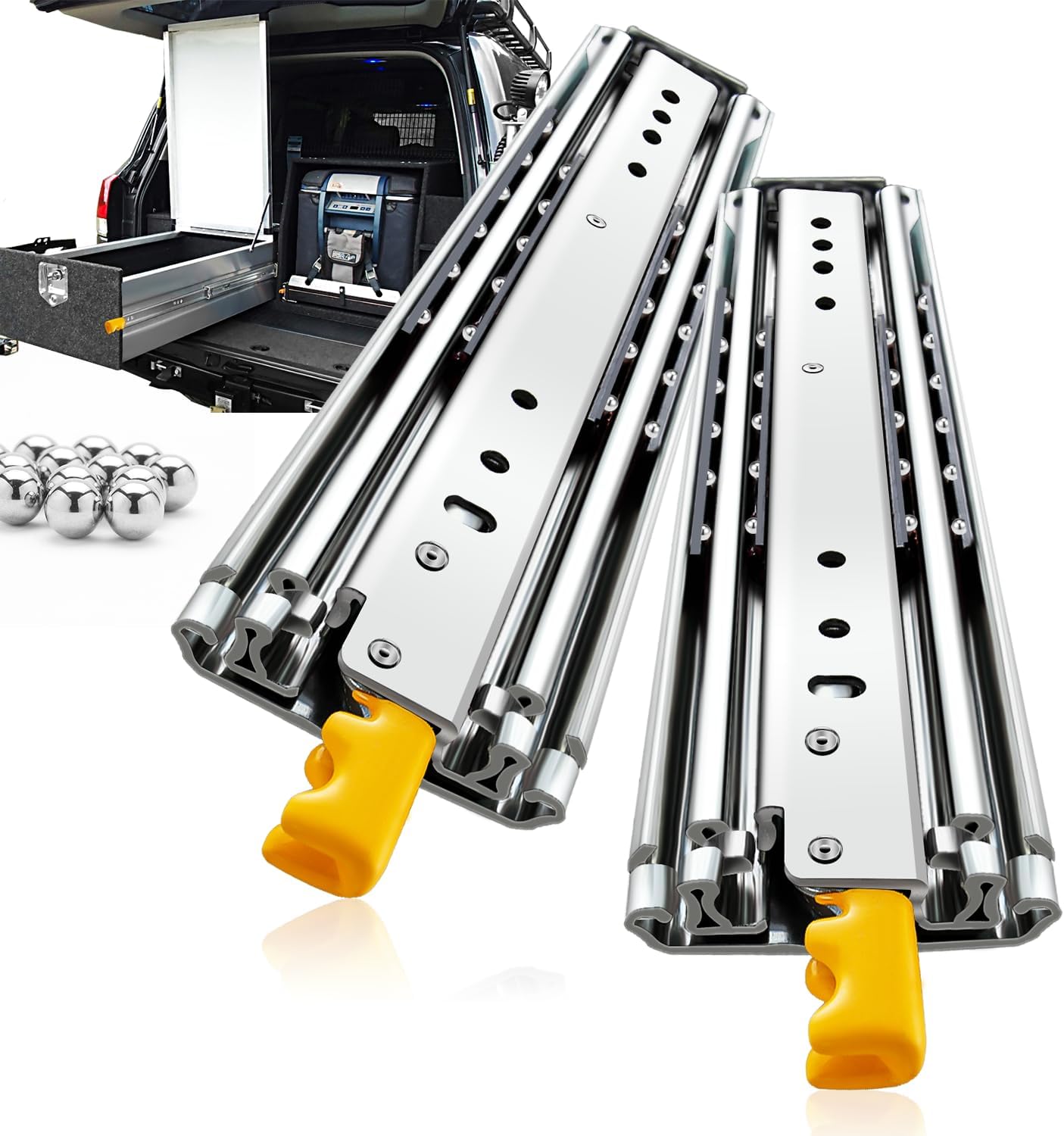

YENUO Heavy Duty 60in 3-Fold Full Extension Drawer Slides - 200 lb

In this review the YENUO Heavy Duty 60in 3-fold full extension drawer slides are evaluated for heavy storage, industrial use and vehicle installations. The single biggest reason to consider these rails is the combination of a long fully extended reach and a high 200 lb load capacity, which makes them suitable when full access to deep drawers is required. The review looks at build quality, lock behavior, installation constraints and real-world fit for cabinets, RVs and workshop drawers.

Key Features

• 3-fold full extension: The three-stage design lets the drawer extend fully so all contents are accessible without removing the drawer.
• High load capacity: Constructed from 2.5mm Q235 steel, each pair supports up to 200 lb for stable storage of heavy tools or equipment.
• Long reach: The rails are 60in long per section and extend to a total of 120in, which suits very deep shelving and specialty cabinets.
• Locking hold-still: A yellow handle provides a hold-still lock when fully closed or fully extended to prevent accidental sliding.
• Durable finish: Electroplated blue zinc resists corrosion and is rated for a long service life under normal conditions.
• Wide application range: Designed for industrial drawers, RVs, trucks, vending machines and other heavy-duty uses where full extension is required.

Who It's For

These slides are best for professionals and hobbyists who need deep, heavy-duty drawers with full access: think industrial storage, mechanical cabinets, vending machine retrofit, or long RV/flatbed drawers. If you routinely store heavy items and need the drawer to extend completely, these rails deliver strong load support and reach.

They are less suitable for standard kitchen or furniture drawers that do not have the cabinet depth or side clearance required. Also, buyers who need included mounting screws or want a simpler shallow-drawer retrofit should look for standard single-stage slides with hardware supplied.

Pros & Cons

Pros

• Very robust construction using 2.5mm Q235 steel gives a reliable 200 lb load capacity.
• The 3-fold mechanism provides true full access to deep drawer interiors without removing the drawer.
• Corrosion-resistant electroplated blue zinc finish promises long service life in demanding environments.
• Hold-still lock adds safety by preventing accidental travel when fully open or closed.

Cons

• Requires a cabinet internal depth of about 60in and 0.75in side clearance each side, so many standard cabinets will not fit.
• Mounting screws are not included, and some users report mixed experiences with lock smoothness or occasional jamming over time.

Specifications

Brand	YENUO
Slide type	3-fold full extension side mount ball bearing
Material	Q235 steel plate, 2.5mm thickness
Slide width	3in (76mm)
Length	60in (per rail), fully extended 120in
Maximum load	200 lb (90 kg) per pair
Lock	Hold-still yellow handle lock (30mm)

Our Verdict

The YENUO 60in 3-fold heavy duty slides are a strong choice when deep drawers and high load capacity matter, offering durable steel construction and full extension that gives complete access to contents. They are good value for industrial, RV and specialty cabinet projects where the required cabinet depth and side clearance are available; however, plan for separate mounting screws and allow for a learning curve with the lock on first installations.

Frequently Asked Questions

What cabinet depth do these slides require?
They are intended for drawers with an internal cabinet depth of about 60in to 64in and need roughly 0.75in clearance on each side of the drawer.

Are mounting screws included?
No, mounting screws are not included; use appropriate M6 screws chosen for your cabinet and drawer material.

Will the lock prevent accidental movement?
The yellow hold-still lock engages when fully closed or fully extended to keep the drawer stable, though some users report occasional lock smoothness issues after extended use.
