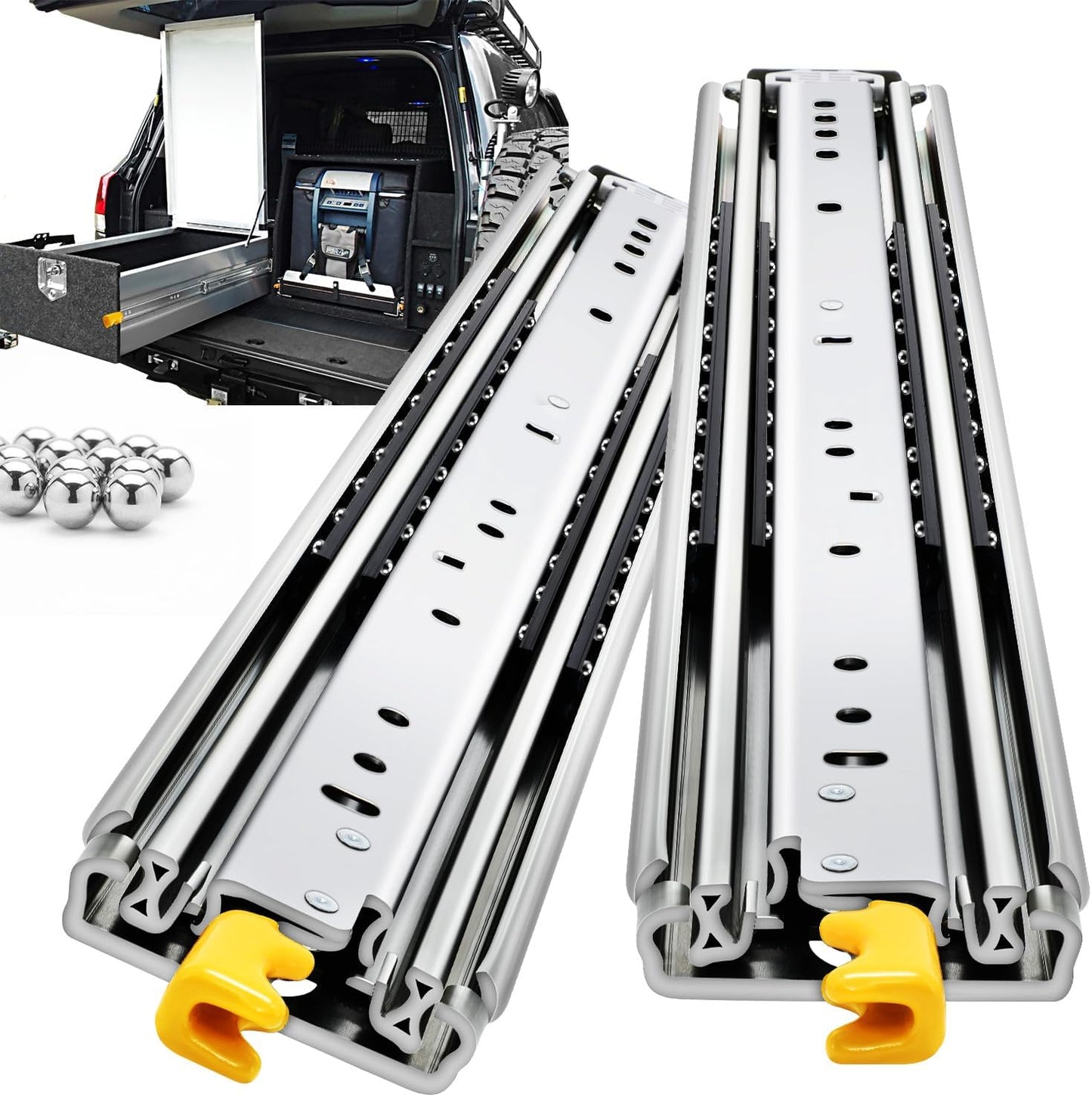

YENUO Heavy Duty Drawer Slides 28in 3-Fold Full Extension - 430 lb

In this review the YENUO Heavy Duty Drawer Slides are evaluated for heavy workshop and industrial use where strength and full access matter most. The key reason to consider them is the combination of a true 3-fold full extension and a high 430 lb load capacity, which lets large drawers pull out fully while carrying very heavy loads. This review looks at build, lock behavior, installation notes and real-world durability so you can decide if these rails suit an equipment cabinet, RV drawer, or heavy truck application.

Key Features

• 3-fold full extension: Allows the drawer to be pulled out completely so the entire contents are accessible without reaching into the cabinet.
• High load capacity: Rated up to 430 lb, the thick Q235 steel construction supports heavy tools and equipment with less flex than standard slides.
• Durable finish: Electroplated blue zinc treatment resists oxidation and corrosion for long service life in demanding environments.
• Hold-still lock: Built-in yellow lock handle holds the slide still when fully open or closed to prevent accidental movement during use or transport.
• Long service life: Manufacturer claims extensive cycle life and testing, aiming to provide decades of reliable operation in heavy duty installations.
• Wide application range: Designed for goods shelving, industrial drawers, RVs, trucks, vending machines and other heavy duty cabinetry.

Who It's For

The YENUO slides are best for users who need full access to deep, heavy drawers: shop cabinets, industrial equipment racks, RV storage and heavy truck drawers where 3-fold full extension and a 430 lb capacity are required. Installers who manage large, heavy drawers and need a locking feature to stabilize the drawer during travel or maintenance will find this product relevant.

They are less appropriate for small household drawers, shallow cabinetry or projects where mounting screws and more precise hardware are preferred out of the box, since mounting screws are not included and the slides require specific cabinet-to-drawer spacing to fit properly.

Pros & Cons

Pros

• Very sturdy Q235 steel construction provides high load capacity and reduced flex under heavy loads.
• Full 3-fold extension gives complete access to drawer contents without partial obstruction.
• Locking mechanism holds the drawer still when fully open or closed, improving safety during transit or use.
• Corrosion-resistant blue zinc finish extends usable life in harsher environments.

Cons

• Some users report mixed experiences with the lock mechanism and occasional difficulty with smoothness after extended use, so careful installation and occasional adjustment may be needed.
• Mounting screws are not included, and the slides require a specific inside depth and side clearance which can complicate retrofit projects.

Specifications

Brand	YENUO
Slide type	3-fold full extension side mount ball bearing
Installed length	28 in (fully extended 56 in)
Width and material	3 in width, Q235 steel plate 2.5 mm
Maximum load	430 lb / 195 kg
Lock feature	Hold-still lock with yellow 1.18 in handle
Installation note	Suitable for drawers with internal depth 28-30 in and 0.75 in clearance each side (total 1.5 in)

Our Verdict

The YENUO Heavy Duty Drawer Slides are a strong choice when you need full-extension access and very high load capacity for industrial, RV or truck drawers. They offer robust steel construction and a corrosion-resistant finish that deliver long-term value, but installers should allow for the required clearances and source M6 mounting screws separately. For heavy-duty applications where strength and complete access matter more than plug-and-play convenience, these slides represent good value.

Frequently Asked Questions

Do mounting screws come with the slides?
No. Mounting screws are not included; users should acquire appropriate M6 screws for their specific installation.

What drawer depth and clearance are required?
The slides suit drawers with internal depth of 28-30 in and need 0.75 in clearance on each side, so inside cabinet width minus drawer outside width should equal 1.5 in.

How does the lock work?
The yellow handle holds the slides still automatically when fully open or fully closed; press both locks simultaneously to release and allow free sliding.
