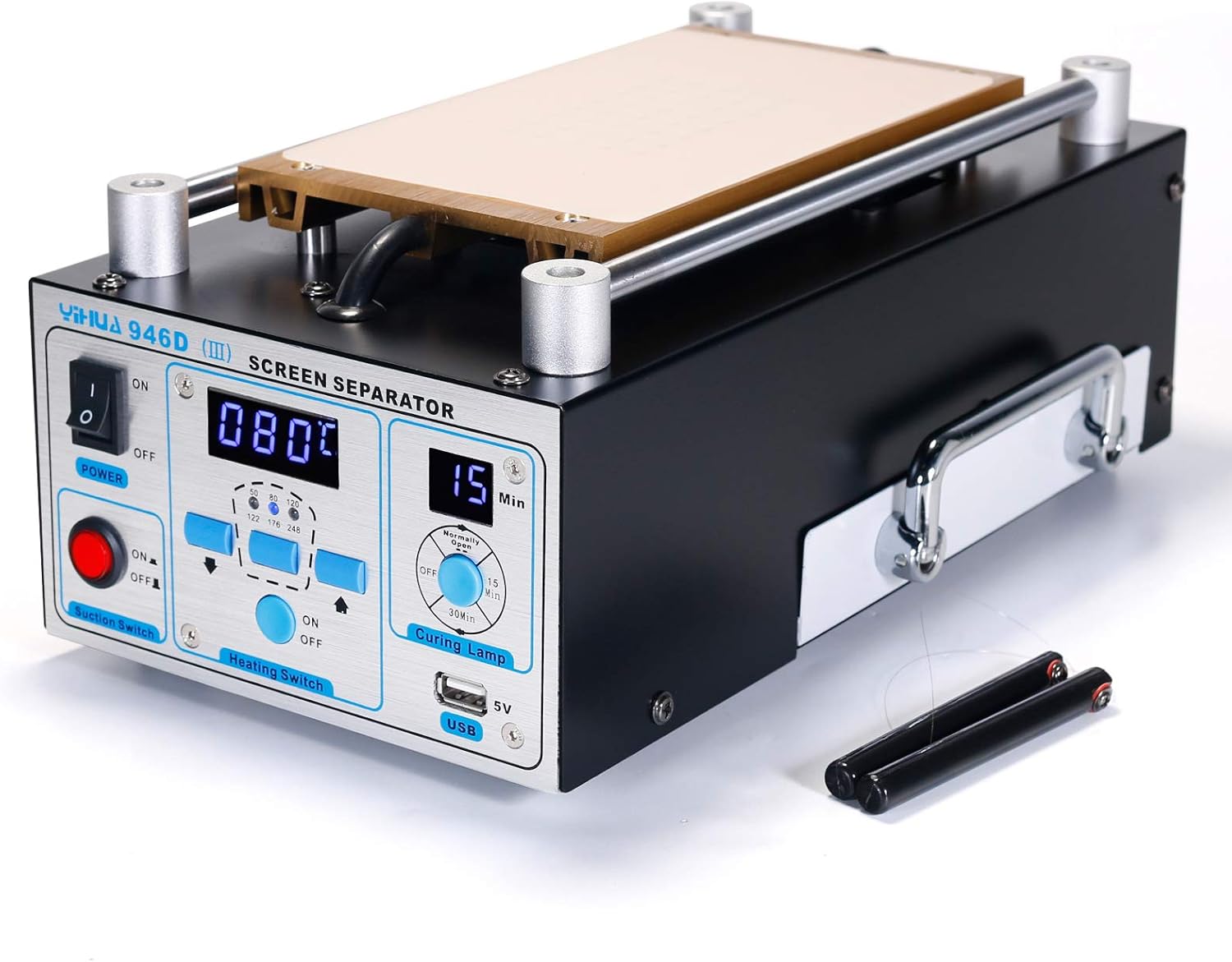

YIHUA 946D-III Screen Separator - Precise LCD Separation for Phones

Our review of the YIHUA 946D-III finds it best suited for technicians and hobbyists who repair mobile phone screens and need precise, stable temperature control and a built-in vacuum for lifting glass. The unit's Zilog Dual Core microcomputer processor and PID heat control deliver rapid warm-up and consistent temperatures, while the long-lasting vacuum pump handles delicate separations without excessive noise. For anyone who wants an integrated separator with a 5V 1A USB power option and a UV curing lamp, this machine simplifies several steps of screen repair into one compact station.

Key Features

• Digital PID control: The Zilog Dual Core microcomputer processor keeps temperature stable and minimizes deviation for safer glass separation.
• Adjustable temperature: Programmable Celsius and Fahrenheit with three quick-call set values allow fast switching between common separation temperatures.
• Built-in vacuum pump: The long-lasting pump provides steady suction with low noise to lift screens without repeated manual handling.
• 5V 1A USB interface: The included USB power option makes it convenient to power or charge compatible phones during work without extra adapters.
• Integrated UV curing lamp: A timed UV lamp cures screen adhesive on-site, avoiding a separate curing step and speeding repair turnaround.
• User-friendly presets: Three temperature presets and selectable 15 or 30 minute curing times make common repairs faster and more repeatable.

Who It's For

This machine is targeted at small repair shops, experienced hobbyists and technicians who perform frequent mobile phone screen replacements and need an all-in-one separator and curing station. The precise digital controls and vacuum pump reduce the risk of heat damage and slippage during separation, which is important for higher-end displays.

Less suitable for someone who only performs the occasional repair or wants the smallest possible footprint; the unit is a benchtop tool best used where space and power (110-127V US plug) are available. Novice users should be comfortable with temperature settings and basic adhesive handling before using this machine.

Pros & Cons

Pros

• Accurate temperature control from the Zilog Dual Core processor and PID system reduces thermal risk to screens.
• Built-in vacuum pump offers strong, quiet suction and improves handling during separation.
• UV curing lamp and USB power port add convenience and reduce the number of separate tools needed.
• Durable build from an experienced manufacturer and clear preset options for common tasks.

Cons

• Designed for 110-127V with a US plug, so users outside that range will need a compatible power solution.
• Not the most compact option for users who only need occasional repairs and minimal bench space.

Specifications

Model	YH-946D-III
Control	Zilog Dual Core microcomputer, PID heat control
Temperature range	122F ~ 248F / 50C ~ 120C
Aluminum panel size	19.8 cm x 11 cm (7.8' x 4.3')
Product dimensions	300 mm x 160 mm x 90 mm (11.8' x 6.3' x 3.5')
Power consumption	Total 330W, vacuum pump 12W
Extras	5V 1A USB port, UV curing lamp, built-in vacuum pump

Our Verdict

The YIHUA 946D-III is a practical, value-oriented separator for technicians who need precise temperature control, a reliable vacuum pump and on-board UV curing in one unit. It is well made, easy to preset for common tasks and saves time by combining several repair steps. Shops and serious hobbyists will find it worth the bench space, while casual or travel repairers may prefer a smaller, lighter alternative.

Frequently Asked Questions

Does this unit include a power cord?
Yes, it ships with a USA power cord and is designed to operate on 110-127V with a US-standard plug.

How long does the UV curing lamp run?
The unit offers selectable curing times, typically 15 minutes or 30 minutes, and actual cure depends on the adhesive used.

Is the vacuum pump noisy?
The built-in pump is described as quiet with strong suction and long life, suitable for bench use without excessive noise.
