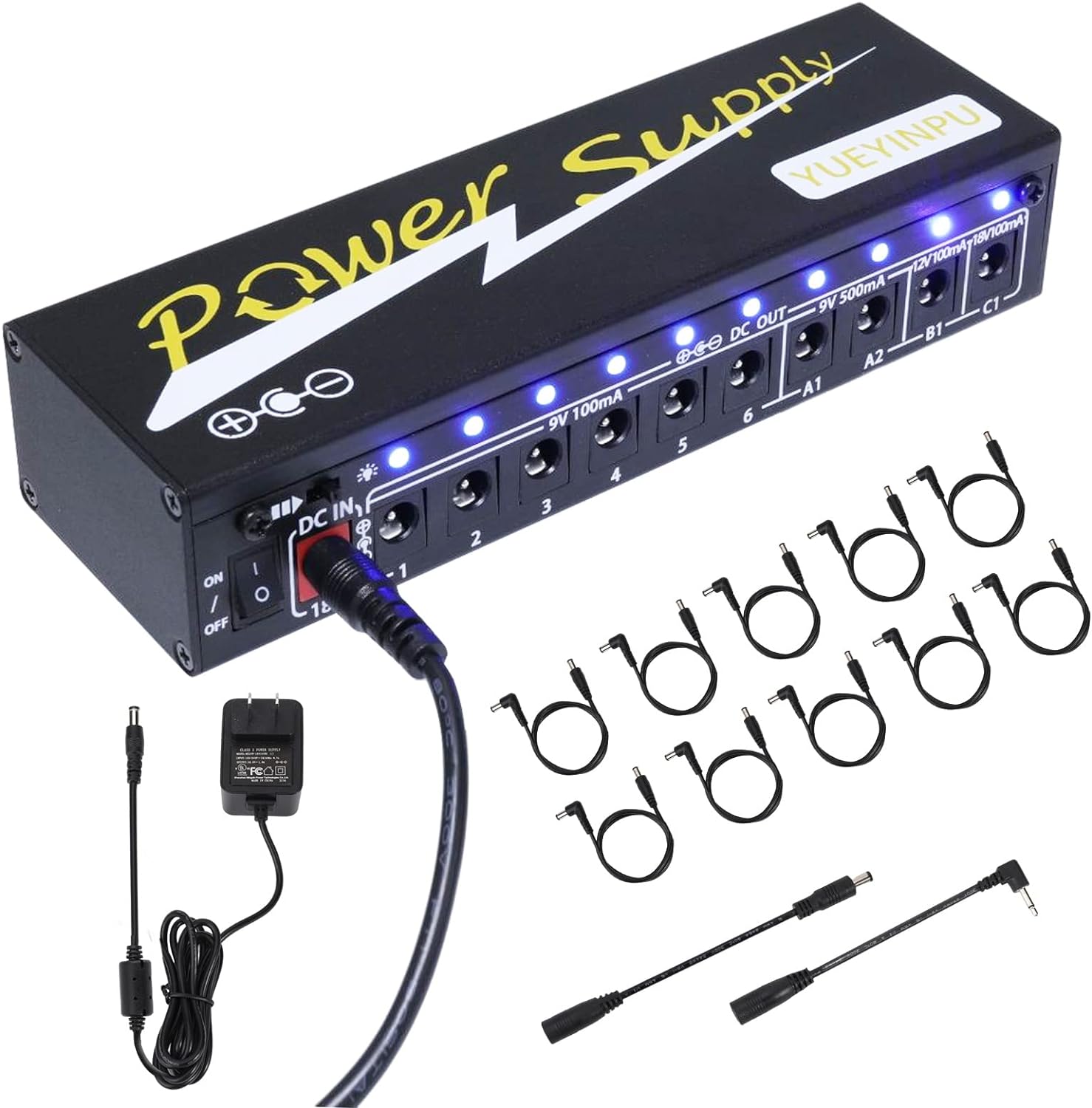

Power Supply for Guitar Effect Pedals 10 Isolated DC Outputs - Quiet

In this review of the Power Supply for Guitar Effect Pedals 10 Isolated DC Output, the bottom line is simple: this unit is aimed at gigging and home players who need reliable, separate power rails for multiple pedals without hum or interference. The reviewer found it especially useful for players running several 9V pedals plus one or two higher-voltage units because of its mix of 9V/12V/18V outputs and dedicated short-circuit protection per channel, making it a practical, compact choice for pedal board power distribution.

Key Features

• 10 Isolated Outputs: Ten separate DC outputs allow multiple pedals to be powered independently so one pedal fault does not interrupt the rest of the chain.
• Varied Voltage Options: The mix of six 9V 100mA, two 9V 500mA, one 12V 100mA and one 18V 100mA outlets covers common pedal power needs without adapters.
• Separate Short-Circuit Protection: Each output has its own protection so a short on one channel shuts only that channel down, preserving the others for continued performance.
• LED Fault Indicators: Bright blue LEDs show power status and make it easy to locate a short-circuited channel while other channels remain lit.
• Compact Aluminum Case: The heat-dissipating aluminum alloy housing keeps the unit light and portable while reducing noise from the power supply during use.

Who It's For

The Power Supply is best for guitarists or pedalboard builders who run a moderate number of analog and digital pedals and want isolated outputs to prevent ground loops and noise. Its combination of several low-current 9V feeds plus higher-current 9V and single 12V/18V rails suits players mixing small stompboxes with a few power-hungry pedals.

It is less suitable for setups that require large amounts of current on many outputs simultaneously or those needing integrated mounting hardware specific to a particular pedalboard brand; users with very high-current digital rigs should consider a supply with higher current capacity per rail.

Pros & Cons

Pros

• Isolated outputs and per-channel short-circuit protection reduce the chance that one faulty pedal will kill the whole board.
• Quiet operation with little to no humming, making it suitable for stage and studio use.
• Compact, lightweight aluminum construction fits neatly under many pedalboards and travels well.
• Clear LED indicators help quickly identify problem channels during a show.

Cons

• Some pedals that demand higher current may not be supported by the lower 100mA outputs, so users must check current requirements.

Specifications

Brand	YUEYINPU
Outputs	10 isolated DC outputs
Output mix	6x 9V 100mA, 2x 9V 500mA, 1x 12V 100mA, 1x 18V 100mA
Protection	Separate short-circuit and overcurrent protection per channel
Indicators	Bright blue LED status lights with per-channel fault indication
Housing	Aluminum alloy, heat-dissipating, portable

Our Verdict

The Power Supply for Guitar Effect Pedals is a practical, value-oriented power box for players who need multiple isolated rails and reliable protection on stage or at home. Its quiet operation, clear LED indicators and compact aluminum case make it a sensible choice for most pedalboard setups, provided users confirm individual pedal current needs against the lower 100mA outputs.

Frequently Asked Questions

Can I use my own adapter?
The unit requires the supplied 18V DC adapter for proper operation; using the provided adapter ensures correct voltage and polarity.

Will a shorted pedal shut down the whole supply?
No, each of the 10 outputs has separate short-circuit protection so a short on one channel will not disable the others.

Is the supply noisy?
Customers report minimal buzzing or humming and the aluminum housing with noise reduction design helps keep it quiet for gigs and recording.
