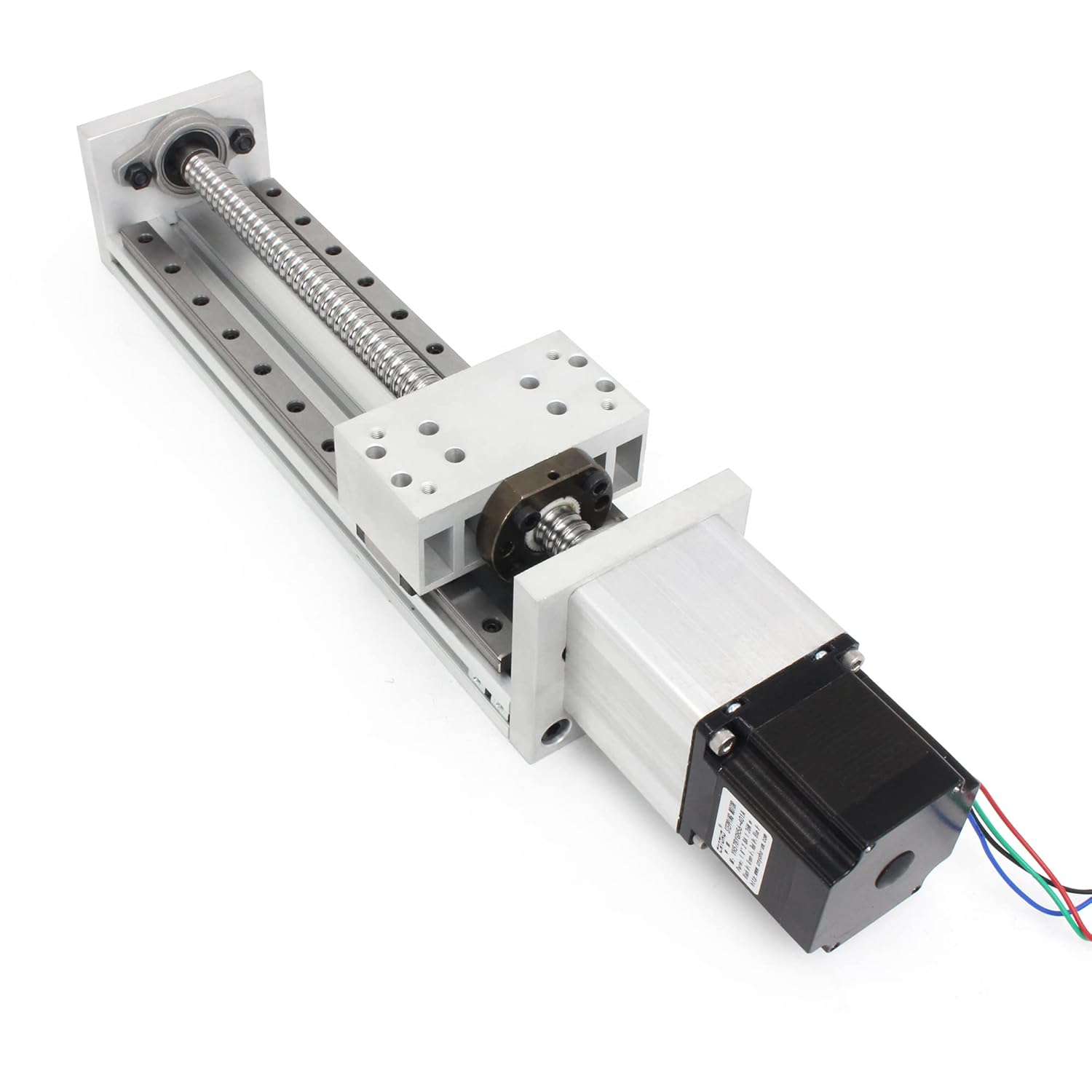

ZBX80 100mm Stroke CNC Linear Stage Motion Actuator - Precision X Y Z

In this review of the ZBX80 100mm Stroke CNC Linear Stage Motion Actuator, the bottom line is clear: this unit is aimed at hobbyists and light industrial builders who need a compact, robust linear slide with precise ballscrew motion. The reviewer found the combination of an aluminum alloy body, a high precision chrome-plated ballscrew and an included Nema23 stepper motor delivers reliable, repeatable travel across a 100mm effective stroke. The actuator stands out for load capacity and build quality, making it a practical choice where rigidity and longevity matter.

Key Features

• 100mm Effective Stroke: Provides just under 4 in of controlled travel, suitable for small CNC tables and positioning tasks.
• High Precision Ballscrew: Chrome-plated surface increases hardness and wear resistance, improving repeatability under load.
• Nema23 Stepper Motor Included: The 57 x 57 x 56mm stepper with 1.2 Nm torque and 1.8 degree step ensures steady, pulse-controlled motion for typical CNC controllers.
• Solid Load Capacity: Horizontally it supports up to 80 kg and vertically up to 20 kg, which covers many tooling and fixturing applications.
• Dust Resistant Base Design: A three-sided enclosed slide reduces dirt ingress and lowers maintenance frequency for extended service life.

Who It's For

The ZBX80 suits small shop builders, desktop CNC users and automation tinkerers who need a compact linear actuator with a sturdy aluminum frame and integrated stepper motor. Its 80 kg horizontal rating and 20 kg vertical rating make it a good fit for mounting small routers, spindles, cameras or tooling in X, Y or Z axes on light industrial rigs.

Those who require travel longer than 100mm, higher vertical payloads, or integrated electronics such as drivers should look elsewhere. It is not a turnkey control package; buyers will need a driver and controller capable of pulse control and a suitable power supply.

Pros & Cons

Pros

• Solid aluminum construction and quality ballscrew deliver reliable precision and durability.
• Included Nema23 stepper motor simplifies installation and integration into existing CNC systems.
• Three-sided closed design and quality coupling details reduce maintenance and improve concentricity.

Cons

• Limited to a 100mm stroke, so not suitable for projects needing longer travel.
• Does not include a stepper driver or controller, so additional components are required for operation.

Specifications

Our Verdict

The ZBX80 100mm Stroke CNC Linear Stage is a well-built, value-minded actuator for users who need a robust short-travel linear slide with high precision ballscrew and an included Nema23 motor. It is especially worthwhile for small CNC builds and light automation where rigidity and low maintenance matter, provided the 100mm stroke and need for a separate driver match the project requirements.

Frequently Asked Questions

Is a driver included?
No, the unit ships without a stepper driver or motion controller; buyers must supply a compatible pulse-control driver and power supply.

What is the effective travel?
The actuator provides a 100mm effective stroke, approximately 3.94 in of linear travel.

Can it carry heavy tooling?
It supports up to 80 kg horizontally and 20 kg vertically, suitable for small spindles and fixtures but not for large industrial loads.
