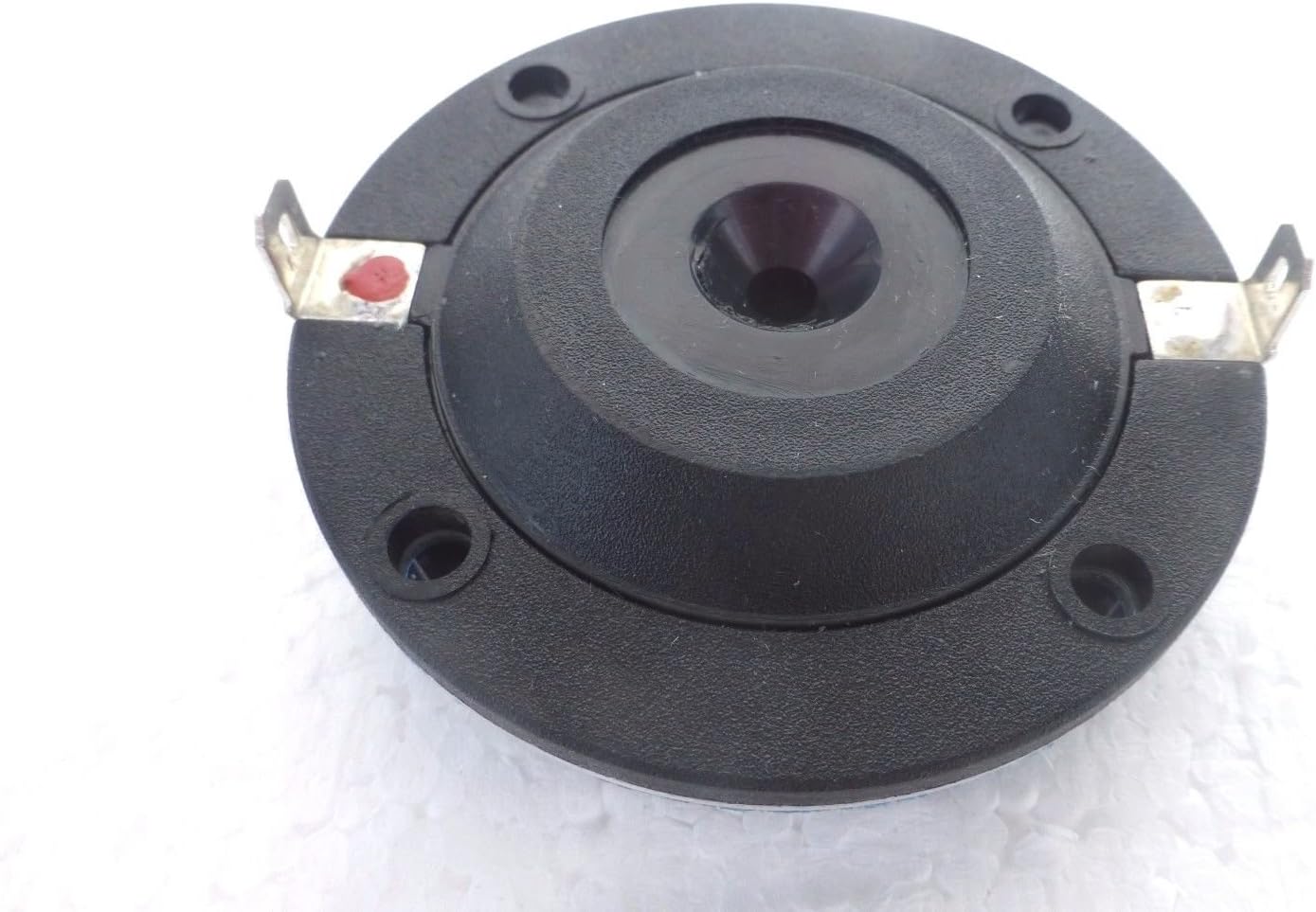

ZXPC Diaphragm Replacement for BMS-4538 and Yorkville NX750P Drivers

In this review of the ZXPC Diaphragm Replacement, the bottom line is simple: this is a focused repair part for technicians and hobbyists who need a precise, OEM-style diaphragm for compatible BMS-4538, Yorkville NX750P and Elite drivers. The reviewer found the component delivers the exact mechanical dimensions and impedance characteristics needed to restore driver performance without complex modification. If you need a direct-fit voice coil and diaphragm assembly to get a blown or worn high-frequency driver working again, this replacement is a practical, no-frills solution.

Key Features

• Overall Diaphragm Diameter: The 2.76 in (70.2mm) diameter offers a direct mechanical match to drivers specified for this size, making installation straightforward.
• Voice Coil Diameter: The 1.50 in (38.1mm) voice coil diameter ensures correct alignment with the driver magnetic gap for reliable acoustic output after replacement.
• Nominal Impedance: The 8 ohms nominal impedance allows compatibility with common professional speaker crossovers and amplifiers without needing impedance conversion.
• DCR: With a 6 ohm DC resistance, the part provides the expected electrical continuity for mid-to-high frequency sections and helps preserve crossover behavior.
• Compatibility: Labeled compatible with E12E, 15E and 20B style drivers, it simplifies parts selection when repairing Elite and similar driver types.

Who It's For

This diaphragm replacement is aimed at audio technicians, live sound engineers, and experienced DIYers who maintain or repair professional PA speakers and studio monitors. It is especially useful for people who want a component that closely matches the original driver mechanical and electrical parameters so speaker performance returns to its prior character.

It is not intended for casual buyers seeking an upgrade to sound quality or for applications where the exact mechanical fit is unknown; anyone without soldering experience or who cannot confirm driver model compatibility should seek professional repair or alternative solutions.

Pros & Cons

Pros

• Direct-fit dimensions make installation simpler and reduce the need for modification when replacing a damaged diaphragm.
• Electrical specs like 8 ohm nominal impedance and 6 ohm DCR maintain predictable interaction with existing crossovers.
• Voice coil size matches common professional driver gaps, supporting consistent acoustic performance after repair.

Cons

• Compatibility is limited to specific driver families (E12E, 15E, 20B and similar), so verification is required before purchase.
• The listing provides minimal descriptive detail beyond core specs, so installers must rely on measurements rather than extensive documentation.

Specifications

Overall Diaphragm Diameter	2.76 in (70.2mm)
Voice Coil Diameter	1.50 in (38.1mm)
DC Resistance (DCR)	6 Ohms
Nominal Impedance	8 ohms
Compatible Driver Models	E12E, 15E, 20B, BMS-4538, Yorkville NX750P, Elite E12/E15/E210B

Our Verdict

The ZXPC diaphragm replacement is a pragmatic repair part for anyone restoring compatible PA or monitor drivers. Its matched diameters and electrical characteristics make it a sensible value when the original diaphragm is damaged, provided the buyer confirms model compatibility before ordering.

Frequently Asked Questions

Will this diaphragm fit my Elite E15 driver?
Yes, the part lists compatibility with E15-style drivers and shares the same mechanical and electrical dimensions required for those models.

Does the 6 ohm DCR affect amplifier matching?
The 6 ohm DC resistance is consistent with an 8 ohm nominal impedance driver and will not require amplifier changes; it should behave like the original driver in the crossover network.

Is professional installation required?
Not strictly, but installers should have experience with speaker disassembly and alignment to ensure the voice coil and diaphragm sit correctly in the magnetic gap.
