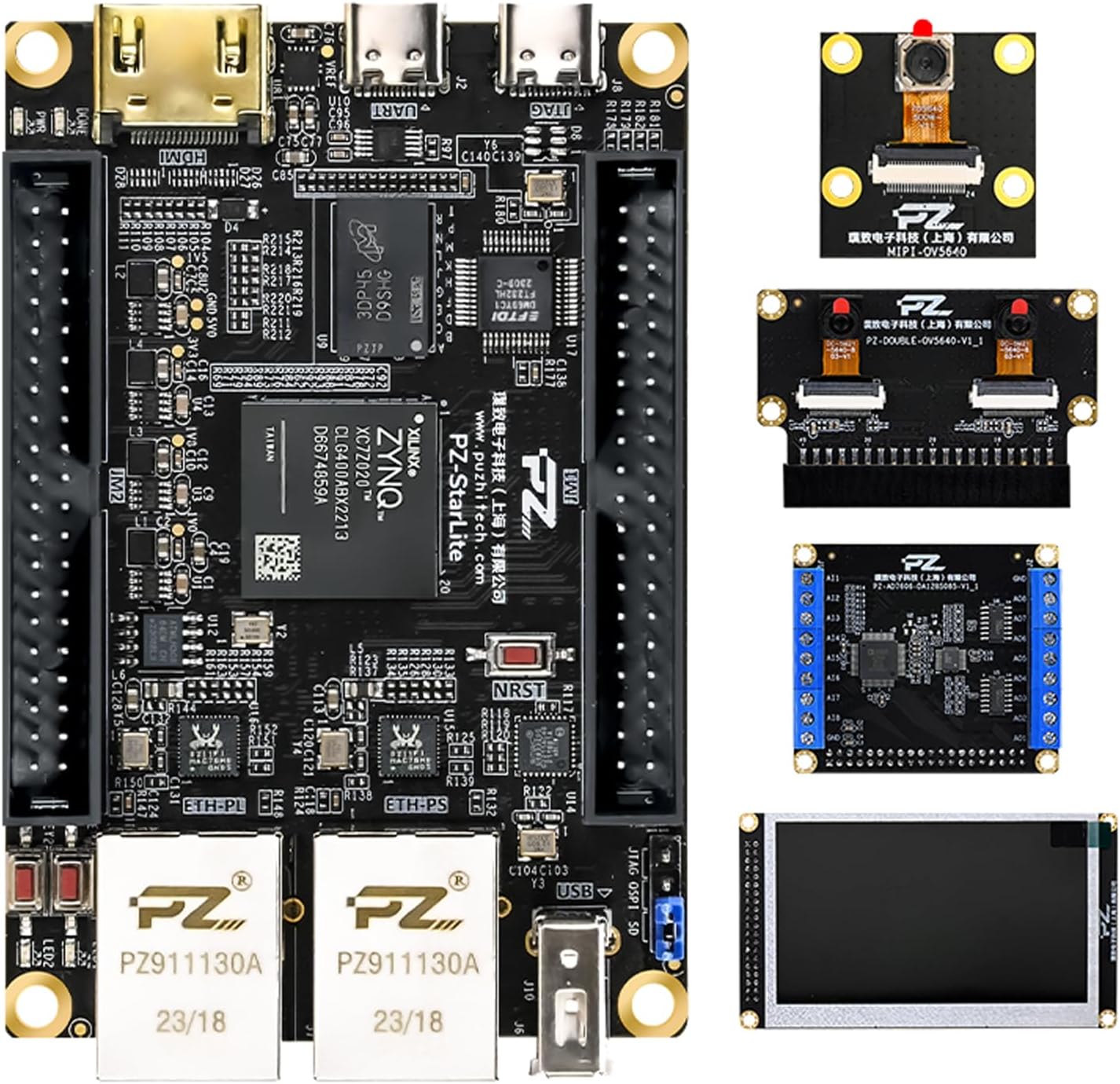

ZYNQ 7000 FPGA Development Board PZ7020-SL-C - Compact ZYNQ Learning

In this review the ZYNQ 7000 FPGA Development Board (PZ7020-SL-C, Deluxe Package) is evaluated as a compact learning and prototyping platform for embedded Linux and FPGA projects. The single biggest reason to consider this board is its combination of a dual-core ARM Cortex-A9 PS and programmable PL on the Xilinx ZYNQ XC7Z010/020, which gives developers a true system-on-chip environment for both software and hardware experiments. For students, researchers, and embedded engineers who need a small, well-connected board that can boot Linux and run HDL demos, this board delivers a balanced feature set in a 90x60mm industrial-grade form factor.

Key Features

• ZYNQ-7000 SoC: The dual-core ARM Cortex-A9 plus programmable logic enables mixed software-hardware development and accelerators on the same chip.
• Integrated interfaces: HDMI, USB 2.0 host, UART and JTAG provide straightforward I/O for display, peripherals, serial debug and programming.
• Gigabit networking: Both PS and PL Ethernet interfaces allow flexible networking tests and hardware offload experiments for embedded applications.
• Flexible memory and boot: With 512MB or 1GB DDR3, 128Mb QSPI flash and a 64Kbit EEPROM, the board supports multiple boot sources via JTAG, QSPI or SD card.
• Expansion options: A 40-pin expansion connector supports AD/DA, LCD and camera modules so projects can grow beyond basic demos.
• Industrial build: The 90x60mm board with immersion gold finish and 5V/1A input suits lab and constrained industrial environments.

Who It's For

The ZYNQ 7000 board is ideal for university courses, hardware labs and embedded engineers who want hands-on experience with a Xilinx ZYNQ XC7Z010/020 SoC and need a platform that runs embedded Linux alongside FPGA logic. Its built-in HDMI, Gigabit Ethernet and expansion header mean learners can build complete demos involving video, networking and sensor I/O without a lot of extra hardware.

It is less suitable for absolute beginners who prefer plug-and-play microcontroller boards with large community tutorials; newcomers should be prepared for FPGA toolchains and Linux setup. Also, projects requiring very large FPGA fabric or very high-speed I/O not mentioned in the specs would be better served by larger development kits.

Pros & Cons

Pros

• Compact ZYNQ system that combines dual-core ARM and FPGA fabric for versatile prototyping.
• Good set of onboard interfaces including HDMI, USB host, SD and Gigabit Ethernet for real applications.
• Robust memory and storage choices with DDR3, QSPI flash and EEPROM for flexible boot and runtime setups.

Cons

• Not aimed at absolute beginners-requires familiarity with FPGA toolchains and embedded Linux.
• MIPI CSI camera input is available only on the 7020 variant, limiting some camera projects on the smaller SKU.

Specifications

Our Verdict

The PZ7020-SL-C ZYNQ 7000 development board is a compact, capable platform for students and engineers who need to develop embedded Linux systems and FPGA logic together. Its mix of interfaces, memory options and boot choices make it a practical learning kit and prototyping board, offering good value for those ready to work with Xilinx toolchains rather than a plug-and-play microcontroller setup.

Frequently Asked Questions

Can this board run embedded Linux?
Yes. The board supports embedded Linux and includes hardware demos suitable for running kernel and user-space experiments.

Which model has camera input?
The MIPI CSI camera input is available on the 7020 variant; the feature is not present on all XC7Z010 SKUs.

How can the board be powered and booted?
It uses a 5V/1A power input and supports booting via JTAG, QSPI flash or SD card.
